Macro

Features

2U, 3U, 4U, 5U, 6U, 8U high
Rugged design with cover plates in steel
Large size
Frame in extruded aluminium for maximum mechanical stability
Grooves for PC-boards
2,5 mm thick front panel
Completely flat front panel for easy machining and silk screening
Front handles included
Rugged design, suitable for demanding and heavy duty applications
Suitable for mobile applications within professional audio or light systems

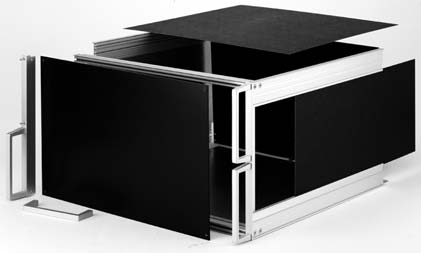

19 inch heavy duty enclosure for demanding applications. For rack mount or stand alone use. Detachable top and bottom cover for inspection purpose. Top and bottom plates are removable without disassembling the enclosure. Macro series enclosures are available in 6 standard heights and 3 standard depths and delivered complete and ready for assembly.

	OUTSIDE DIMENSIONS			INSIDE DIMENSIONS			PC-BOARD
PART NO	WIDTH	HEIGHT	DEPTH	WIDTH	HEIGHT	DEPTH	WIDTH	DEPTH
MACRO 2-30	439	87.5	324.5	418	82	318	421.5	318
MACRO 2-40	439	87.5	424.5	418	82	418	421.5	418
MACRO 2-50	439	87.5	499.5	418	82	493	421.5	493
MACRO 3-30	439	132.5	324.5	418	127	318	421.5	318
MACRO 3-40	439	132.5	424.5	418	127	418	421.5	418
MACRO 3-50	439	132.5	499.5	418	127	493	421.5	493
MACRO 4-30	439	177	324.5	418	171.5	318	421.5	318
MACRO 4-40	439	177	424.5	418	171.5	418	421.5	418
MACRO 4-50	439	177	499.5	418	171.5	493	421.5	493
MACRO 5-30	439	221.5	324.5	418	216	318	421.5	318
MACRO 5-40	439	221.5	424.5	418	216	418	421.5	418
MACRO 5-50	439	221.5	499.5	418	216	493	421.5	493
MACRO 6-30	439	266	324.5	418	260.5	318	421.5	318
MACRO 6-40	439	266	424.5	418	260.5	418	421.5	418
MACRO 6-50	439	266	499.5	418	260.5	493	421.5	493
MACRO 8-30	439	355	324.5	418	349.5	318	421.5	318
MACRO 8-40	439	355	424.5	418	349.5	418	421.5	418
MACRO8 50	439	355	499.5	418	349.5	493	421.5	493
