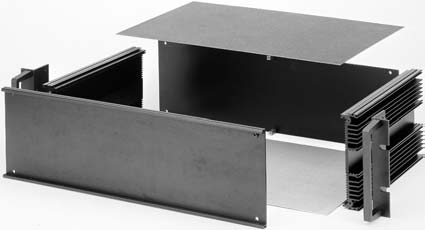

2 or 3U high enclosures for rack or bench top applications. Top and bottom plates are removable without disassembling the enclosure. Multi series enclosures are available in 6 standard sizes and delivered complete and ready for assembly.
| OUTSIDE DIMENSIONS | INSIDE DIMENSIONS | PC-BOARD | ||||||
|---|---|---|---|---|---|---|---|---|
| PART NO | WIDTH | HEIGHT | DEPTH | WIDTH | HEIGHT | DEPTH | WIDTH | DEPTH |
| MULTI 18 | 216 | 87.5 | 263 | 178 | 82 | 250 | 181.7 | 250 |
| MULTI 25 | 216 | 132.5 | 263 | 178 | 127 | 250 | 181.7 | 250 |
| MULTI 55 | 432 | 87.5 | 263 | 394 | 82 | 250 | 397.7 | 250 |
| MULTI 60 | 432 | 132.5 | 263 | 394 | 127 | 250 | 397.7 | 250 |
| MULTI 75 | 432 | 87.5 | 363 | 394 | 82 | 350 | 397.7 | 350 |
| MULTI 85 | 432 | 132.5 | 363 | 394 | 127 | 350 | 397.7 | 350 |
2U high enclosure for rack mount or bench top applications.Top cover is easily detachable for inspection purposes.The front panel is 3 mm thick and completely flat for easy machining and silk screening. Rear panel is flat 2,5 mm thick aluminium plate sized, to allow you to easily remove top and bottom cover plates. Side extrusions are heat sinks with internal grooves for self tapping screws, PC-boards, mounting boards, cover plates, etc. Outer grooves are provided on each heat sink for insertion of cover plates to insulate high voltage components.Top and bottom covers are removable without disassembling the box. Multi series enclosures are available in 2 standard sizes and delivered complete and ready for assembly.
| OUTSIDE DIMENSIONS | INSIDE DIMENSIONS | PC-BOARD | ||||||
|---|---|---|---|---|---|---|---|---|
| PART NO | WIDTH | HEIGHT | DEPTH | WIDTH | HEIGHT | DEPTH | WIDTH | DEPTH |
| MULTI 19-263 | 432 | 87.5 | 263 | 394 | 82 | 250 | 397.7 | 250 |
| MULTI 19-363 | 432 | 87.5 | 363 | 394 | 82 | 350 | 397.7 | 350 |
