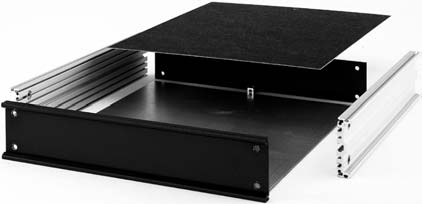

Micro series is designed for bench top applications. Easily detachable top cover for inspection purposes. Grooves in the front panel allow you to insert a pre-screened front panel and/or plexiglass front. Micro series enclosures are available in 5 standard sizes and delivered complete and ready for assembly.
| OUTSIDE DIMENSIONS | INSIDE DIMENSIONS | PC-BOARD | ||||||
|---|---|---|---|---|---|---|---|---|
| PART NO | WIDTH | HEIGHT | DEPTH | WIDTH | HEIGHT | DEPTH | WIDTH | DEPTH |
| MICRO 18 | 114.7 | 44 | 170.5 | 93.7 | 38.5 | 160 | 100 | 160 |
| MICRO 25 | 114.7 | 44 | 200.5 | 93.7 | 38.5 | 190 | 100 | 190 |
| MICRO 55 | 216 | 44 | 260.5 | 195 | 38.5 | 250 | 201.5 | 250 |
| MICRO 60 | 216 | 44 | 360.5 | 195 | 38.5 | 350 | 201.5 | 350 |
| MICRO 75 | 248.5 | 44 | 260.5 | 227.5 | 38.5 | 250 | 233.5 | 250 |
Micro 19 series is ready for rack mounting.The front panel is 3 mm thick and completely flat for easy machining and silk screening. Micro 19 series has been developed for microcomputers, modems,communications and computer peripheral equipment. Grooves in the side extrusions make mounting of PC-cards and cover plate a simple slide-in operation. Micro 19 series enclosures are available in 3 standard sizes and delivered complete and ready for assembly.
| OUTSIDE DIMENSIONS | INSIDE DIMENSIONS | PC-BOARD | ||||||
|---|---|---|---|---|---|---|---|---|
| PART NO | WIDTH | HEIGHT | DEPTH | WIDTH | HEIGHT | DEPTH | WIDTH | DEPTH |
| MICRO 19-137 | 432 | 44 | 137 | 411 | 38.5 | 131 | 417.5 | 131 |
| MICRO 19-257 | 432 | 44 | 257 | 411 | 38.5 | 250 | 417.5 | 250 |
| MICRO 19-357 | 432 | 44 | 357 | 411 | 38.5 | 350 | 417.5 | 350 |
